U. S. Air Force Academy Introductory Flight Training (IFT)






DV-20 Falcon Operating Limitations

AIRSPEED (KIAS)

FUEL

Vr, Normal takeoff, Flaps T/O

44

FUEL PRESSURE (PSI)

3.5-16.5

Vr, Short Field Takeoff Flaps T/O

44

TOTAL QUANTITY (GAL)

20

Engine failure after takeoff, flaps T/O

65


Engine failure after takeoff, flaps LDG

65

RPM

Vx, flaps cruise

65

TAKEOFF (MIN)

2000

Vx, flaps T/O

60

CRUISE

2500-2600

Vy, flaps cruise

70


Vy, flaps T/O

66

WIND (KNOTS)

Va at 1764 lbs

106

ANY DIRECTION

30

Best Glide (Flaps Cruise)

73

CROSSWIND (DUAL)

20

Best Glide (Flaps T/O or Landing)

65

CROSSWIND (SOLO)


15

Normal and Soft field landing speed

65

TAILWIND (DUAL)

5

Short field landing speed

63

TAILWIND (SOLO)

0

OIL LIMITATIONS

WEIGHT LIMITATIONS (LBS)

CAPACITY (QUARTS)

Max Ramp Weight

1770 Lbs

MINIMUM

4

Max Takeoff Weight

1764 Lbs

OPTIMAL

5

MAXIMUM


6

CYLINDER HEAD

PRESSURE (PSI)

TEMP (DEGREES F)

MINIMUM

10

MINIMUM

240

NORMAL

30-60

NORMAL

300-420

MAXIMUM

100

CAUTION

420-460

MAX TIME TO REACH 10 PSI

10 SEC

LIMIT

460

TEMPERATURE (DEGREES F)

ELECTRICAL SYSTEM

MINIMUM

75

BATTERY

12 volts

NORMAL

170-220


20 amps

MAXIMUM

240

ALTERNATOR

14 volts



20 amps

DV-20 Falcon Checklist Bold Face Acronymns

Engine Failure during Takeoff Roll
T
B
F

Engine Failure after Takeoff-Runway Available
A
LRR

Engine Failure after Takeoff-No Runway Available
A
T
M
A
L

If Engine Fails To Restart
M
F
I
M

Engine Failure during Flight
A
LSS

Engine Restart
M
F
I
F
F
T
I

Forced Landing
A
F
M
I

Engine Fire during START
F
C
M
I
M
A

Engine Fire in FLIGHT
F
C
A
F

Electrical Fire on Ground
M

Electrical Fire in Flight
M
C


M
C
C

Phraseology

Academy Tower/Ground Phraseology

"Academy Ground, Talon ___, North Ramp, request Taxi, with information ___, ______ departure" (Call on North Ramp, before entering Bravo taxiway; if parked on Row one, call before moving)
"Academy Tower, Talon ___, ready for TAKEOFF" (Call when ready for takeoff and holding short of assigned runway; if you request a downwind departure and Tower approves it, permission to turn crosswind is implied. On the other hand, you might request a downwind before takeoff and NOT get the approval, in which case you must request it again and receive approval before turning crosswind. Straight-out departures normally require no further permissions from Tower after takeoff; you may switch frequencies automatically when clear of the Class D airspace, when tower hands you off to another ATC facility (e.g., under IFR), or when the USAFA departure procedure in use requires a frequency change (normally the case for all IFT flights).
Tower, Talon ___, request CLOSED" (A required call before turning crosswind when you would like to remain in th etraffic pattern. While flying closed traffic, you must recieve verbal permission from the Tower before each turn to crosswind. Sometimes the Tower will anticipate your call and say "Left/Right turn approved" or "Left/Right cosed traffic approved" before you ask for it when you are flying mulitple patterns for touch-and-go practice. If Tower has not approved the turn by the time you reach 300' below TPA, request closed. In order to keep radio talk to a minimum, Tower has requested that you do not repeat the approval to fly closed traffic-just turn when approved).
"Tower, Talon ___, turning BASE," (full-stop/touch-and-go/low approach) (Base leg call is mandatory at KAFF. You must also let the Tower know whether you will be full-stop, touch-and-go, or low approach. If you forget to mention this, Tower will inquire, "Say type landing." the default clearance at any towered airport will be, "Cleared to land", which means you are cleared for a full-stop landing. If you want a touch-and-go, you must explicitly request it.)
Tower, Talon ___, BREAKING OUT for ENTRY ___" (16L/34R) (Required call when breaking out of the patern for re-entry; this will be followed by the appropriate call to begin the entry leg at the ENTRY point)
"Tower, Talon ___, ENTRY, ___" (16L/34R) (Call when directly above the entry point at 8000' MSL. Approach the entry point so that you can roll out over the point on the entry leg heading, which is 45 degrees to the downwind leg)
"Academy Tower, Talon ___, FOREST, with information ___" (Report FOREST, PALMER, or FIVE MILES SOUTH. Note that the word "Academy" is used only in the initail radio call. Also note that the arrival name need not be included.)
...etc.

Springs Approach/Departure Phraseology

"Springs Departure, Talon ___, DEPOT, WOODMAN Departure"
"Springs Departure, Talon ___, NORTHGATE, EAST Departure"
"Springs Approach, Talon ___, SOUTHGATE, SOUTHEAST Departure"
"Springs Approach, Talon ___, SOUTHGATE, SOUTH, Departure"
...etc.

Eagle Traffic Phraseology

"Eagle Traffic, Talon ___, (power lines), Woodman departure, to AREA ___"
"Eagle Traffic, Talon ___, (power lines), Woodman Departure, to MEADOWLAKE"
"Eagle Traffic, Talon ___, (power lines), Woodman Departure, to EASTON, then AREA ___"
"Eagle Traffic, Talon ___, (power lines), East Departure, to EASTON, then AREA ___"
"Eagle Traffic, Talon ___, (power lines), East Departure, to MEADOWLAKE"
"Eagle Traffic, Talon ___, (PALMER), North Departure, to AREA ___"
"Eagle Traffic, Talon ___, Bullseye Departure, to JUNKYARD"
"Eagle Traffic, Talon ___, Bullseye Departure, to TOWER"
...etc.

Estimate crosswind before takeoff or landing

Estimated crosswind component ___ knots" (made by tower)

Advancing Takeoff Power

"RPM ___"
"Engine gauges in the GREEN"
"Airspeed is ALIVE"

At 44 KIAS On Takeoff

"Vr"

Positive Climb On Takeoff

"Positive climb"

1,000 Ft. Below assigned altitude

"Out of ___ for ___"

Flap Extension In The Air

"Airspeed below 100" (beofre extending Flaps T/O)
"Airspeed in the white arc" (before extending Flaps LDG)

Flap Retraction/Extension On The Ground

PF: "Flaps Identified" (PF identifies the flap lever with hand)
PNF: "Flaps Verified" (PNF verifies that the correct lever has been identified)
PF: "Confirmed" (PF may then move the lever and confirm flap movement to desired position)

MANEUVERS

TAKEOFFS

Pitch Attitudes
Vy climb: 5 degrees nose up (top of engine cowling 1/4" below horizon
Vx climb: 7-9 degrees nose up (top of engine cowling ON the horizon

Normal Takeoff
Vr
44 KIAS
Vy 66 KIAS
"400' AGL...flaps CRUISE"
Vy 70 KIAS

Short Field Takeoff
Brakes, full throttle
Vx climb...60 KIAS
Clearing obstacle, pitch for Vy, 66 KIAS
"Above 66 KIAS...flaps CRUISE"
Vy...70 KIAS

Soft Field Takeoff
Full back-evelator pressure...No stopping...No brakes
As nosewheel comes off ground, maintian Vy pitch attitude
As mains come off ground, lower pitch to stay in ground effect

With Obstacle
Accelerate to 60 KIAS in ground effect
Vx climb...60 KIAS
Clearing obstacle, pitch for Vy, 66 KIAS
"Above 65 KIAS...flaps CRUISE"
Vy...70 KIAS

No Obstacle
Accelerate to 60 KIAS in ground effect
Vy climb...66 KIAS
"400' AGL...flaps CRUISE"
Vy...70 KIAS

APPROACHES & LANDINGS

Pich Attitudes
65 KIAS descent power-on: 3 degrees nose down
63 KIAS descent power-on: 2-3 degrees nose down

Normal Approach & Landing
65 KIAS

500 ft. AGL, verify "fuel pump ON, mixture RICH"
ROund out; slowly reduce power to idle and touch down on main wheels
Hold nose off with elevator back pressure...After nosewheel down, gently apply brakes
After exiting runway, call Ground, go to appointed stopping area, stop, and complete after landing checklist.

Short Field Approach & Landing
63 KIAS
Proper pitch/power corrections to maintain aim on landing point until round out.
"flaps up, maximum braking"

Go-aound/Rejected Landing
Full power
...pitch to stop descent
Flaps T/O
Pitch Vy (66 KIAS)
After clearing obstacle, flaps CRUISE (70 KIAS)
Sidestep

Forward Slip to Landing
Throttle IDLE
Simultaneously bank upwind & yaw with opposite rudder
Maintain original ground track (centerline)
Adjust PITCH to maintain airspeed (airspeed gauge will not be accurate)
When desired flight path reached, resume normal approach

SLOW FIGHT & STALLS

Pre-maneuver checklist: Power-off & Crossed-control stalls: Fuel pump ON, mixture RICH
Power-on stalls, Slow Flight: Fuel pump ON, mixture LEAN Slow Flight Clean
Power 1600 RPM, decrease airspeed (Vx pitch)
When 7 knots above stall speed (49 KIAS), power 1900-2000 RPM
Maintain airspeed/altitude
Recovery: Full pwer; maintain altitude; at cruise speed, RPM 2500, CRUISE CHECKLIST

Slow flight Maneuvering Landing Config.
Power 1600 RPM...Below 100 KIAS flaps T/O...Below 78 KIAS flaps LDG...decrease airspeed (Vy pitch)
When approaching atall speed (34 KIAS), power 2100-2200 RPM
Maintain airspeed/altitude
Recovery: Full power, IMMEDIATELY retract flaps to T/O...at 65 KIAS flaps CRUISE...RPM 2500, CRUISE CHECKLIST

Power-on Stall
Power 1600 RPM...Below 100 KIAS, flaps T/O
At 44 KIAS, FULL POWER
Slowly increase pitch to 15-20 degrees (toes on the horizon")
Recovery: Announce "Stalling"...Reduce angle of attack...verify FULL POWER...level wings with coordinated controls...Pitch Vy...at 65 KIAS, flaps CRUISE
Maintain starting altitude
At cruise speed, 2500 RPM, cruise checklist

Power-off Stall
Power 1600 RPM...Below 100 KIAS flaps T/O...78 KIAS flaps LDG...Maintain altitude until 67 KIAS
Establish stabilized approach at 65 KIAS for 200 ft
Power IDLE...Slowly increase pitch for Vy pitch (5 degrees)
Recovery: Announce "Stalling...Reduce andle" of attack...add FULL POWER...level wings with coordinated controls...Pitch Vy...Flaps T/O...at 65 KIAS, flaps CRUISE
Maintain starting altitude...At cruise speed, 2500 RPM, CRUISE CHECKLIST

Crossed-control Stall
Fuel pump On, mixture RICH
Power 1600 RPM...Below 100 KIAS, flaps T/O...Below 78 KIAS, flaps LDG
Maintain altitude until 67 KIAS
Establish stabilized approach at 65 KIAS for 200 ft. (Pitch 5 degrees nose down)
Power IDLE
Start right or left TURN to simulate base leg
Apply either excessive rudder in direction of turn or rudder opposite turn
Maintain constant bank angle in both situations
Recovery: Announce "Stalling" (IMMINENT)...Reduce andlge of attack...add FULL POWER...level wings with coordinated controls...Pitch VY...Flaps T/O...at 65 KIAS, flaps CRUISE
Maintain starting altitude...at cruse speed, 2500 RPM, CRUISE CHECKLIST

Recovery From Unintentionaly Spin
Throttle...IDLE
Rudder...full OPPOSITE
Stick...ease FORWARD
Rudder...neutral when rotation stops
Flaps...CRUISE
Elevator...pull cautiously

STEEP TURNS

Pre-maneuver checklist: Mixture LEAN for altitude
Pick visual reference point
90 KIAS (RPM 2300)
Apply back pressure to stick passing 30 degrees of bank
45 degrees bank...(RPM 2600 RPM)
to maintain airspeed
Use visual reference point to lead rollout (approximately 22 degrees prior)
At start of rollout, decrease power (RPM 2300) and maintain altitude/airspeed
Repeat maneuver in opposite direction
CRUISE CHECKLIST

GROUND REFERENCE

ALL GROUND REFERNCE MANEUVERS: 90 KIAS (2300 RPM) Fuel pump ON, mixture RICH (below 1000')

Wind Drift Circle
Select emergency landing spot
360 degrees turn with CONSTANT bank, then roll wings level
Compare final position with starting position

Rectangular Course
C:
Visually clear area for traffic
L: Select emergency landing spot
A: 600-1000' AGL
D: Enter 45 degrees to Downwind
First circuit to the RIGHT
Crab into the wind to maintain constant 1/4 mile from field boundary
Adjust bank angle, pitch, power to maintain same RADIUS, ALTITUDE, and AIRSPEED, during turns
Exit on downwind leg

Turns Around a Point
C: Visually clear area for traffic
L: Select emergency landing spot
A: 600-1000 AGL
D: Enter downwind
First turn to the RIGHT
Adjust bank angle to maintain constant radius around the reference point
Adjust pitch and power as necessary to maintain altitude and airspeed
Exit after two 360 degree turns

S-turns Across a Road
C: Visually clear area for traffic
L: Select emergency landing spot
A: 600-1000 AGL
D: Enter downwind
select road perpendicular to wind
Adjust bank angle to maintain constant radius of turn
Adjust pitch and power as needed to maintain altitude and airspeed
Wings LEVEL as you cross the road
After two 180 degree turns, exit on the downwind leg

TRAFFIC PATTERN

ENTRY LEG
TPA established 2 miles prior
45 degree entry to midfield downwind
85 KIAS (RPM 2200)
Pre-landing checklist
DOWNWIND LEG 1/4 TO 1/2 mile from runway
Abeam landing...1500 RPM and flaps T/O
Descend 75 KIAS
200 ft. below TPA (45 degrees from approach end of rwy) turn base
BASE LEG
70 KIAS
Flaps LDG

UPWIND/DEPARTURE LEGS
300 ft. below TPA turn crosswind

UNUSUAL ATTITUDE RECOVERY

Nose High (airspeed decreasing)
Power FULL...Pitch down (to horizon)...Level wings
Needles reverse trend, pitch for level flight
Needles stop, maintain straight and level
Return to assigned altitude and CRUISE CHECKLIST

Nose Low (airspeed increasing)
Power IDLE...Level wings...Pitch up (to horizon)
Needles reverse trend, pitch for level flight
Needles stop, maintain straight and level
Return to assigned altitude and CRUISE CHECKLIST

CLEARING TURNS

Visually scan the area left and right before turning
Pick visual landmark off ___ (R or L) wingtip
"Clear ___ (R or L)"
and 30 degree bank turn ___ (R of L)
Continuously scan above, below, ahead of flight path
Rollout after 90 degrees of turn
Execute same to the ___ (R or L) (or a second 90 degree turn in same direction)




Diamond Aircraft

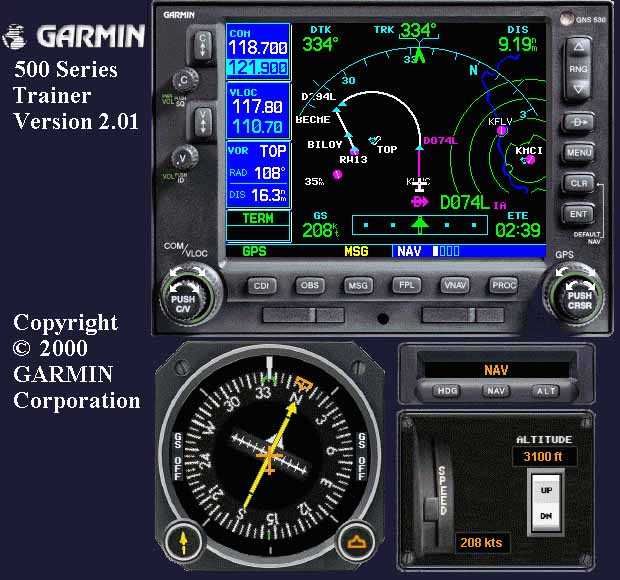

Garmin 530 turtorial/free simulator
